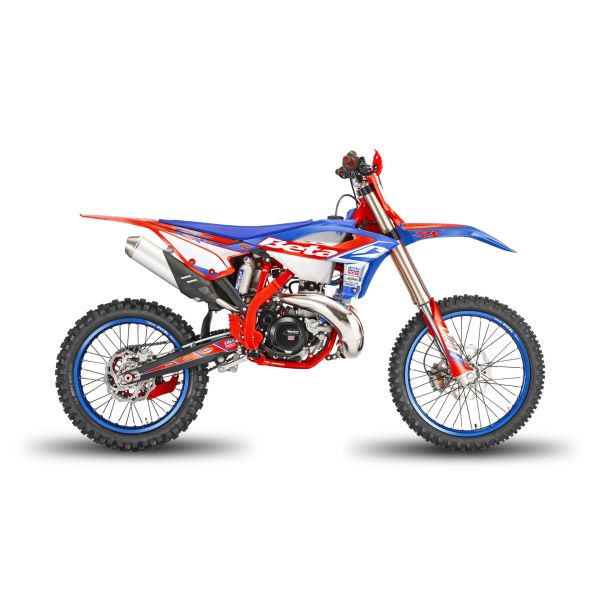

Beta-Built single cylinder, 2-stroke, liquid cooled, with BPV power valve system and counter balancer, electric start with a backup kick starter sold as an option.
Bore:
72mm
Stroke:
72mm
Displacement:
293.1cc
Compression Ratio:
11.63:1
Exhaust Valve:
Beta Progressive Valve (BPV)
Ignition:
AC-CDI Kokusan
Spark Plug:
NGK BR8ECM
Lubrication:
Pre-Mix
Carburetor:
Keihin PWK 36mm
Clutch:
Wet Diaphragm-Style
Transmission:
6-speed
Final Drive:
O-ring chain
Chassis
Frame:
Molybdenum Steel / Double Cradle, with quick air filter access.
Wheelbase:
58.6”
Seat Height:
37”
Ground Clearance:
13.3”
Footrest Height:
16.9”
Dry Weight:
220 lbs. (wet weight, no fuel)
Fuel Tank Capacity:
2.51 US gallons
Front Suspension:
KYB 48mm AOS Closed Cartridge Fork, adjustable compression and rebound
Rear Suspension:
KYB 46mm body with adjustable rebound and high/low speed on compression adjustment
